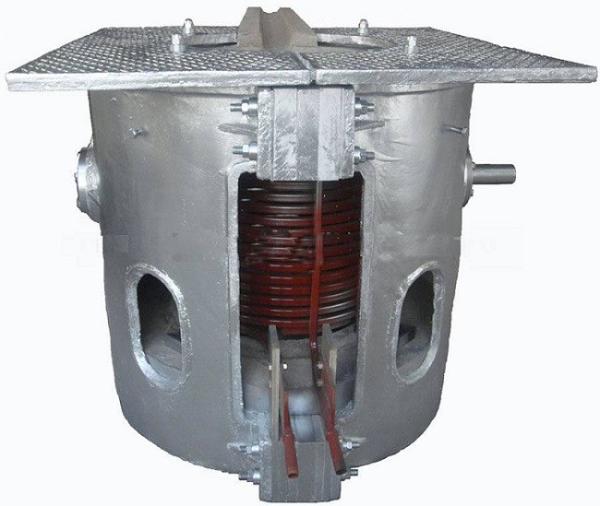

Non-ferrous High Temperature Medium Frequency Furnace 1ton Scrap Metal Melting
Induction Melting Furnace Applications used for steel, iron ,copper ,aluminum melting before casting.
- This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.
- This electric furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.
Medium frequency furnace has following advantages:
A. Easy operation:
A full time operator specially for power supply is not needed.There is only one switch for turning on or off and one power adjustment knob.After started,the only thing that needs to do is rotating the power adjustment knob to the largest location,others are controlled by the device itself.
B.Safety protection functions
1. The main circuit and short circuit protection
2. SCR overvoltage protection
3. Main circuit phase fault protection
4. The main circuit phase loss protection
5. Low water pressure protection
6. SCR overcurrent protection
C. Highly reliable electrical control board
In the operation,the 3-phase current is balanced.Due to the advanced design,3-phase power supply’s sequence could connect randomly.Moreover there is no limit to connect capacitor cabinet and furnace.All of these jobs can be judged to be adapted automatically by the device itself. It makes the installation and maintenance very easily.
Technical parameter of 1ton medium frequency furnace:
| Product name and model | GW-1 Medium Frequency Induction Furnace For Melting Copper |
| Highest temperature | 165°c |
| Temperature accuracy | ±5°c |
| Load capacity | 1000Kg |
| Melting rate | 55mins/batch |
| Medium Frequency power | 800KW |
| Melting frequency | 1000Hz |
| Power consumption | 0.54KWh/Kg |
| Induction coil voltage | 750V |
| Water consumption | 6 tons/hour |
| Power supply | AC,3-phase,208/380/400/415/440/465V,50/60Hz |
| Tilting furnace device | Electric reducer |
| Furnace shell structure | Casting aluminum shell |
Stanard models of SUPER company induction electric furnace :
| Model | Loading capacity (kg) | IF power (kw) | supply voltage (V) | IF-FRE (Hz) | Melting Rate (kg/h) | Power consumption (KWh/kg) |
| GW-0.05 | 50 | 45 | 380/400 | 1000 | 45 | 0.56 |
| GW-0.1 | 100 | 85 | 380/400 | 1000 | 85 | 0.56 |
| GW-0.15 | 150 | 135 | 380/400 | 1000 | 125 | 0.55 |
| GW-0.25 | 250 | 250 | 380/400 | 1000 | 200 | 0.55 |
| GW-0.35 | 350 | 300 | 380/400 | 1000 | 300 | 0.67 |
| GW-0.5 | 500 | 400 | 380/400 | 1000 | 350 | 0.67 |
| GW-0.75 | 750 | 500 | 380/400 | 1000 | 500 | 0.67 |
| GW-1 | 1000 | 800 | 380/400 | 1000 | 800 | 0.67 |
| GW-1.5 | 1500 | 1000 | 660 | 500 | 1200 | 0.61 |
| GW-2 | 2000 | 1250 | 660 | 500 | 1600 | 0.61 |
| GW-3 | 3000 | 1600 | 660 | 500 | 2400 | 0.61 |
| GW-4 | 4000 | 2300 | 660 | 500 | 3200 | 0.6 |
| GW-5 | 5000 | 3000 | 950 | 300 | 4500 | 0.6 |

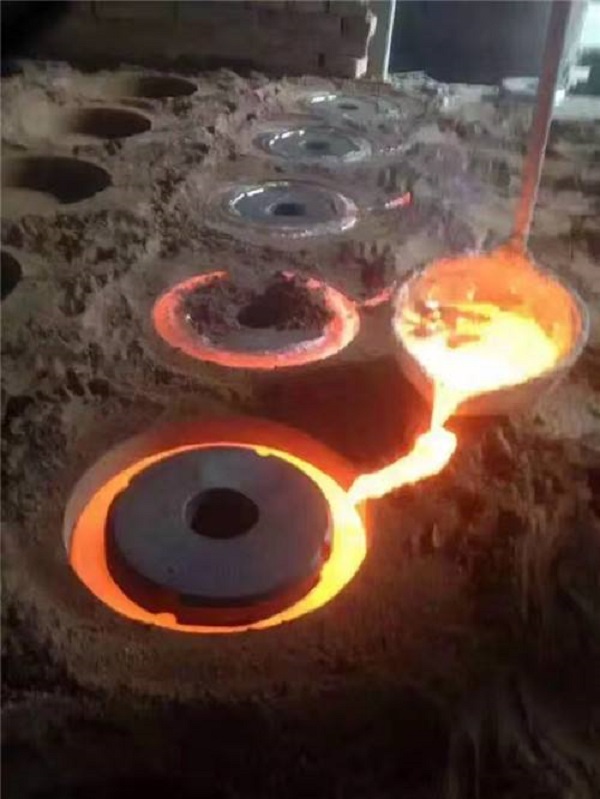

Metal liquid on casting
