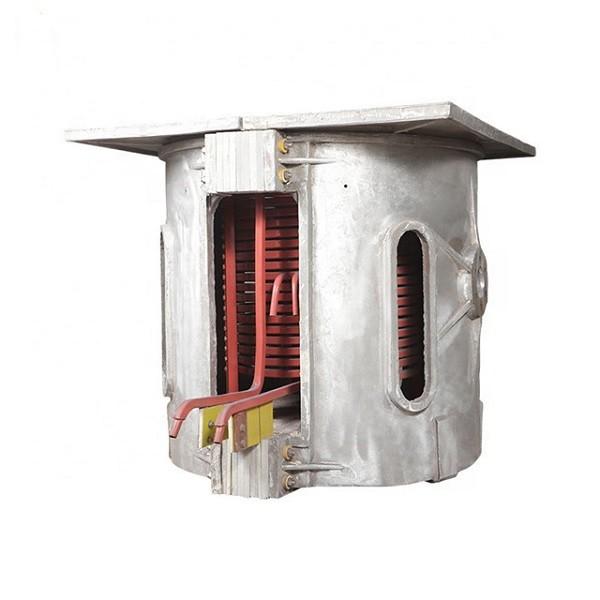

Fast Melting Scrap Metal Melting Electric Furnace 750kg Ingot Producing
Performances and features of metal melting electric furnace :
1. Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2. Fast smelting with low production cost; low-pollution and environment-friendly ;
3. A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
4. Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.
5. Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6. Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.
Scrap metal melting electric furnace application:
♦ Our electric furnace is applicable to melt steel , cast iron , copper, aluminum and other metals.
♦ Electric furnace can be produced with different volume , such as 150kg ,250kg ,350kg ,500kg ,750kg ,1000kg etc...
♦ Electricfurnace can works at 1650C temperature .
♦ Metal melting electric furnace will be matched with metal liquid ladle if customer need .
Main technical parameter of 750kg metal melting electric furnace:
| Model | Loading capacity (kg) | IF power (kw) | supply voltage (V) | IF-FRE (Hz) | Melting Rate (kg/h) | Power consumption (KWh/kg) |
| GW-0.05 | 50 | 45 | 380/400 | 1000 | 45 | 0.56 |
| GW-0.1 | 100 | 85 | 380/400 | 1000 | 85 | 0.56 |
| GW-0.15 | 150 | 135 | 380/400 | 1000 | 125 | 0.55 |
| GW-0.25 | 250 | 250 | 380/400 | 1000 | 200 | 0.55 |
| GW-0.35 | 350 | 300 | 380/400 | 1000 | 300 | 0.67 |
| GW-0.5 | 500 | 400 | 380/400 | 1000 | 350 | 0.67 |
| GW-0.75 | 750 | 500 | 380/400 | 1000 | 500 | 0.67 |
| GW-1 | 1000 | 800 | 380/400 | 1000 | 800 | 0.67 |
| GW-1.5 | 1500 | 1000 | 660 | 500 | 1200 | 0.61 |
| GW-2 | 2000 | 1250 | 660 | 500 | 1600 | 0.61 |
| GW-3 | 3000 | 1600 | 660 | 500 | 2400 | 0.61 |
| GW-4 | 4000 | 2300 | 660 | 500 | 3200 | 0.6 |
| GW-5 | 5000 | 3000 | 950 | 300 | 4500 | 0.6 |
Warranty
· Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
· This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
· Replacement will be shipped to you after photo or other evidence are provided and investigated
